Press brake tooling and guillotine blades — UKB
UKB GmbH is a German manufacturer of press brake tooling and guillotine blades, with more than 35 years of experience. Unlike most manufacturers, who build tooling to order, UKB keeps its own stock of standard press brake tools. Delivery to Romania takes 5 to 7 business days, with the lead time confirmed by the supplier. Lang & Sin is UKB's exclusive representative in Romania. Not sure where to start? See the guide to choosing the right tool, the maintenance guide, or the bend force calculator.
About UKB GmbH
UKB is a family-owned German company, founded in 1991 in Burbach. It started out selling tools from a garage and grew step by step into a full-service supplier of professional press brake tooling and individually made special tools.
In 2022, UKB moved into a newly built facility constructed specifically for the company, with 6,500 m² of production and storage space plus another 1,500 m² of office and social areas. The company remains independent, run by the founding family.
Press brake tooling is chosen by the press's clamping system, not by the part being bent. A UKB Amada system punch and a Trumpf system punch do the same job; what differs is how they lock into the machine. That is why the sections below are split by system, and why in a few cases tools cross between them: Trumpf, Wila type I, and LVD type I punches are interchangeable across all three clampings, and Amada system dies can be adapted with a steel insert.
The range covers V bending, with adjustable openings up to V400 mm, plus operations a standard die cannot perform: U profiles in a single stroke, closed profiles and tall U profiles with the window punch, hinges, stiffening beads, Z steps, embossed radii, trapezoidal profiles, flattening, and ventilation louvers. For geometries that are not in the catalog, UKB designs and produces the tool from your drawing, at lengths up to 6,000 mm.

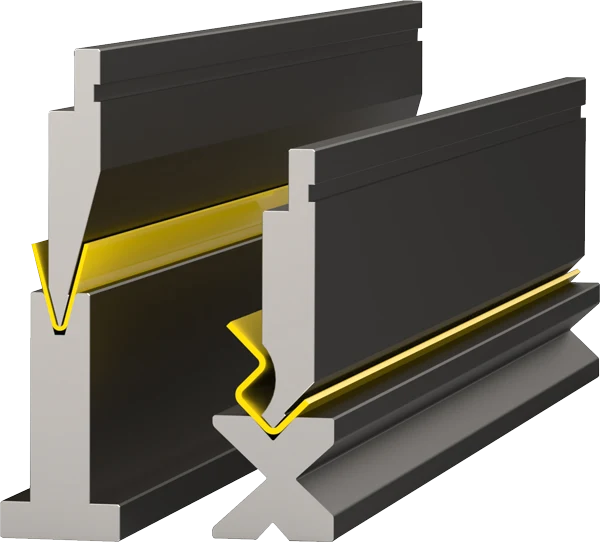

Amada system
UKB punches and dies compatible with the Amada system. See also our guide to choosing UKB tool steel: 42CrMo4, C45, and 1.2312.
| Component | Key specifications | Catalog |
|---|---|---|
| Amada system punches | 42 CrMo4, hardened to 1,100–1,200 N/mm² · C45, hardened to 800–850 N/mm² · C45, 650–800 N/mm² · Bending radii hardened to 52–55 HRC | |
| Amada system dies | Guaranteed interchangeability · Guaranteed parallelism accuracy · End segments with horn extensions |
Amada system punches
- Key specifications
- 42 CrMo4, hardened to 1,100–1,200 N/mm² · C45, hardened to 800–850 N/mm² · C45, 650–800 N/mm² · Bending radii hardened to 52–55 HRC
- Catalog
Amada system dies
- Key specifications
- Guaranteed interchangeability · Guaranteed parallelism accuracy · End segments with horn extensions
- Catalog

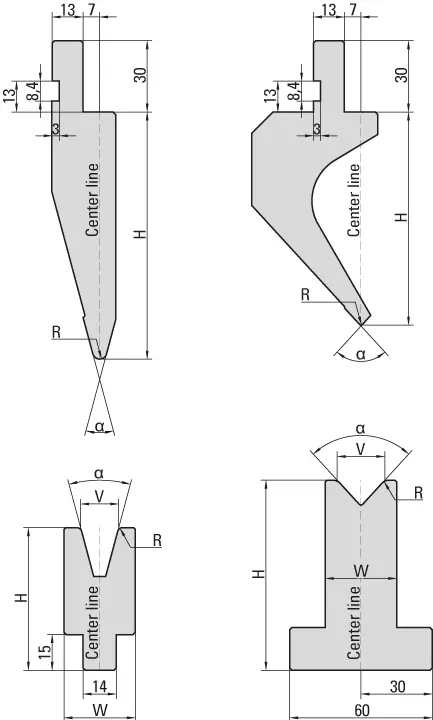

Complete technical data — Amada system Materials and hardness · dimensioned technical drawing · punch and die lengths · video
Amada system Quality and precision 2 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- C45 — 650–800 N/mm²
- Bending radii / entry radii
- hardened to 52–55 HRC
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- Tool marking — with all technical information
Amada system Tool lengths 6 variants
Punches
-
835 mm
-
415 mm
-

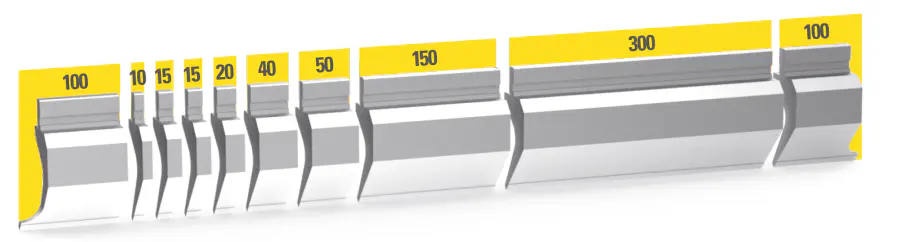

800 mm sectioned
- 10 segments, with left and right horn extensions
Dies
-
835 mm
-
415 mm
-
800 mm sectioned
- 9 segments
Amada system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.

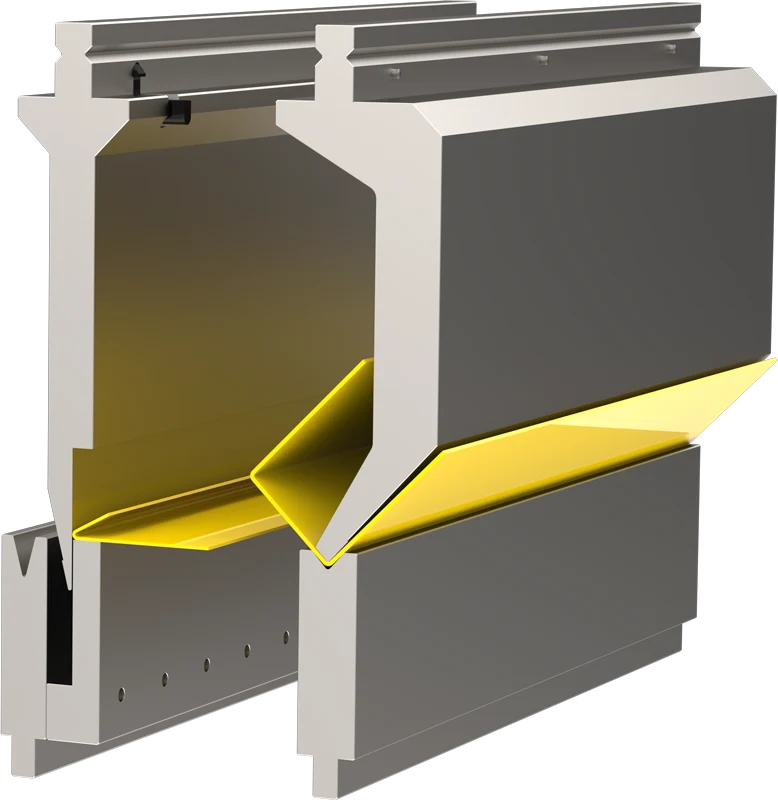

Trumpf system
UKB punches and dies compatible with the Trumpf system.
| Component | Description | Catalog |
|---|---|---|
| Trumpf system punches | 42 CrMo4 (1,100–1,200 N/mm²) and C45 (650–850 N/mm²) · Bending radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism · Simple Clamp (under 12.5 kg) or Safety Pin (over 12.5 kg) clamping, self-centering | |
| Trumpf system dies | Dies at 84° / 80° / 60° / 30°, heights H = 100 / 120 / 150 mm · Working radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism |
Trumpf system punches
- Description
- 42 CrMo4 (1,100–1,200 N/mm²) and C45 (650–850 N/mm²) · Bending radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism · Simple Clamp (under 12.5 kg) or Safety Pin (over 12.5 kg) clamping, self-centering
- Catalog
Trumpf system dies
- Description
- Dies at 84° / 80° / 60° / 30°, heights H = 100 / 120 / 150 mm · Working radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism
- Catalog
Complete technical data — Trumpf system Materials · Simple Clamp and safety pin clamping · lengths and sets up to 4,050 mm · modifications · video
Trumpf system Quality and precision 3 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- C45 — 650–800 N/mm²
- Bending radii / entry radii
- hardened to 52–55 HRC
- Punch clamping, in two variants
-
- Simple Clamp, for segments ≤ 12.5 kg
- Safety pin, for segments > 12.5 kg
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- Self-centring
- Usable on both sides
- Tool marking — with all technical information
Punches for the UKB Wila type I system and the UKB LVD type I system can also be used in a UKB Trumpf system clamping.
Trumpf system Tool lengths 25 variants

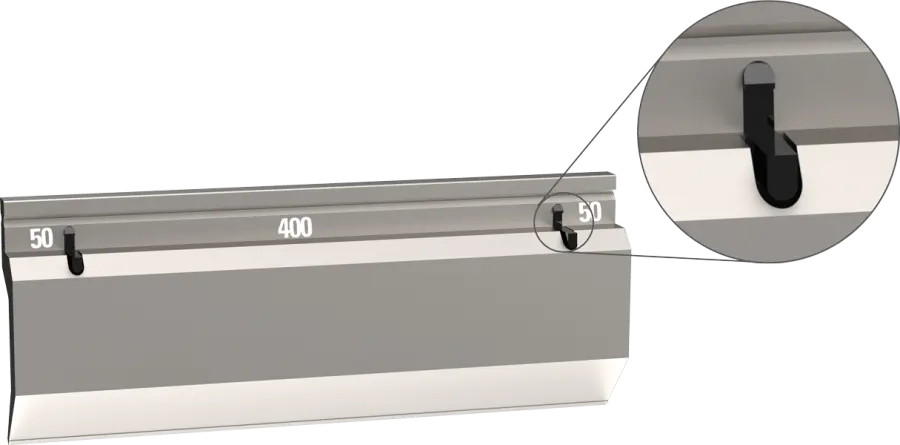

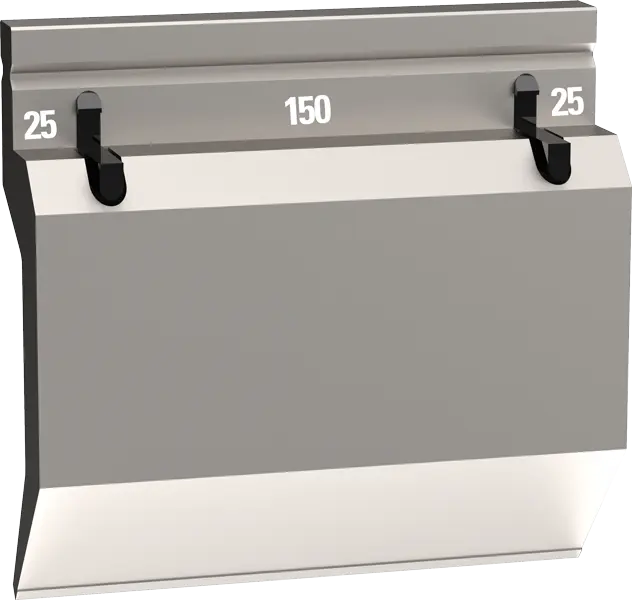

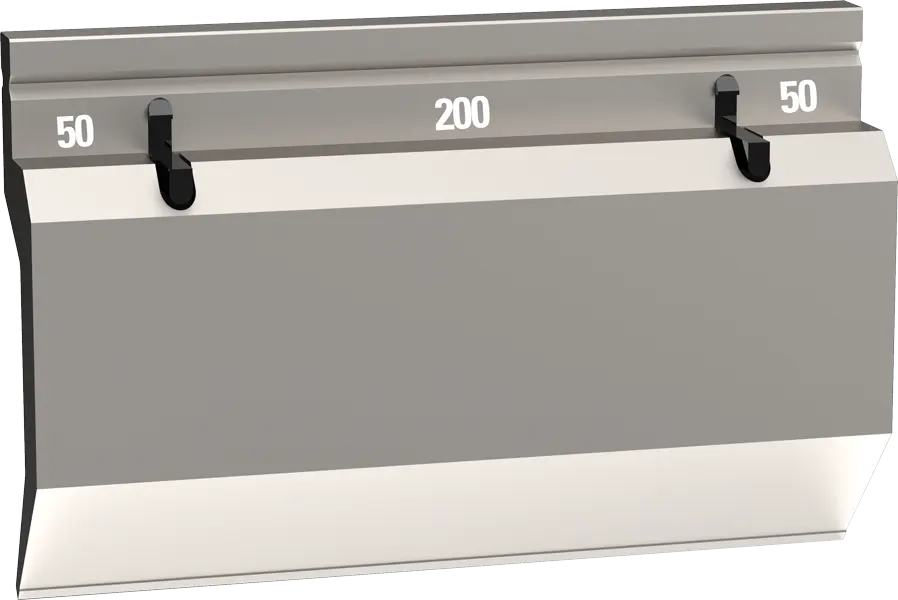

Punches with Simple Clamp ≤ 12.5 kg
-
500 mm
-
300 mm
-
200 mm
-
100 mm
-
100 mm
- Left horn extension
-
100 mm
- Right horn extension
-

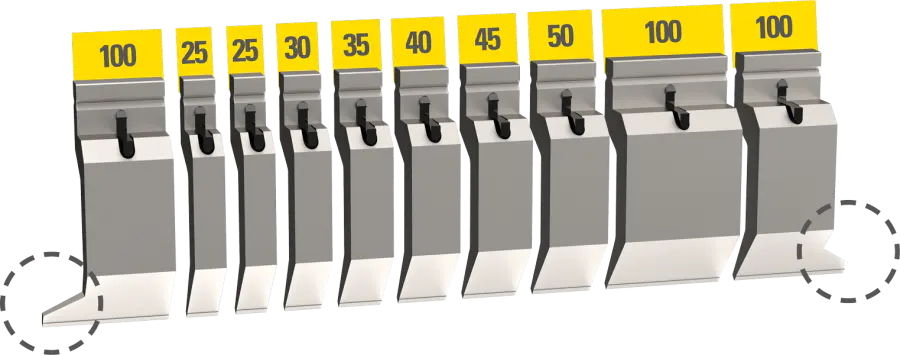

550 mm sectioned
- Sectioned punches are supplied as a complete set
- 10 segments, with left and right Simple Clamp
Punch sets with Simple Clamp
-
2,050 mm
- 14 segments, with left and right Simple Clamp
-
3,050 mm
- 16 segments, with left and right Simple Clamp
-

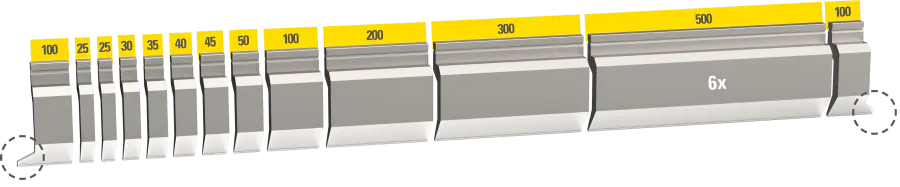

4,050 mm
- 18 segments, with left and right Simple Clamp

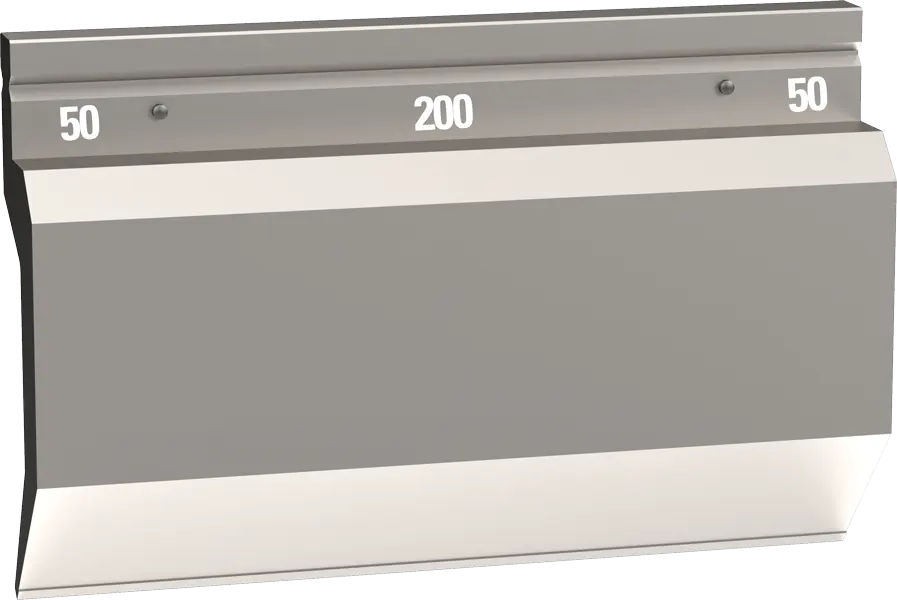

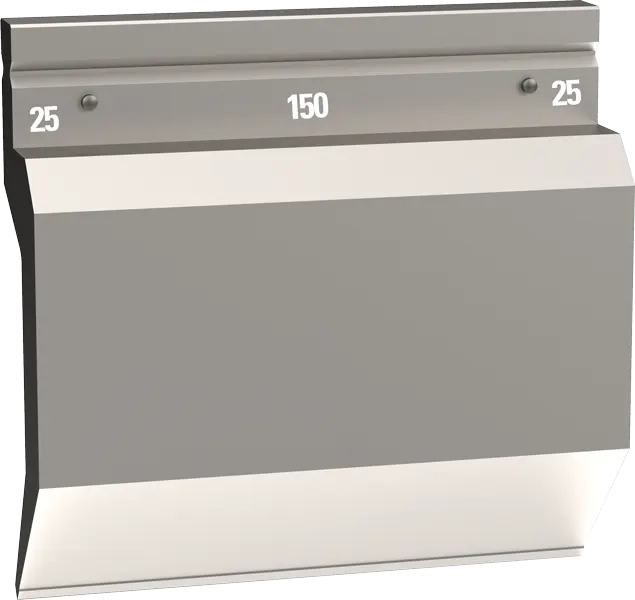

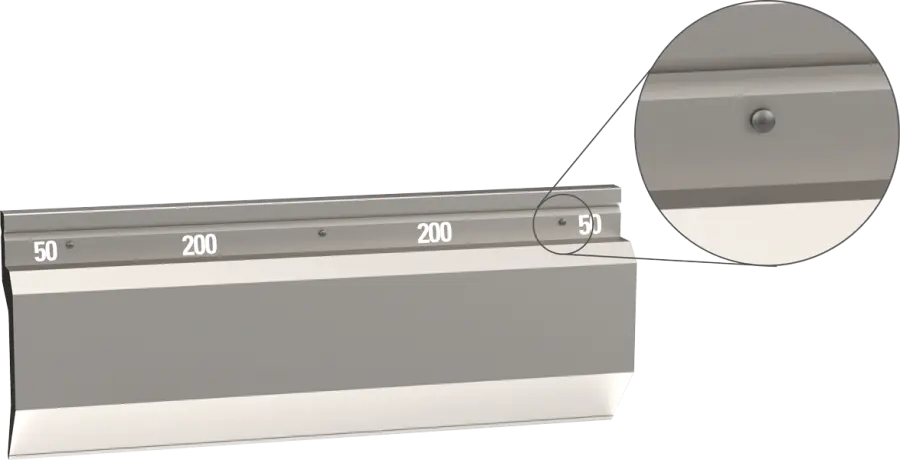

Punches with safety pins > 12.5 kg
-
500 mm
-
300 mm
-
200 mm
-
100 mm
-
100 mm
- Left horn extension
-
100 mm
- Right horn extension
-

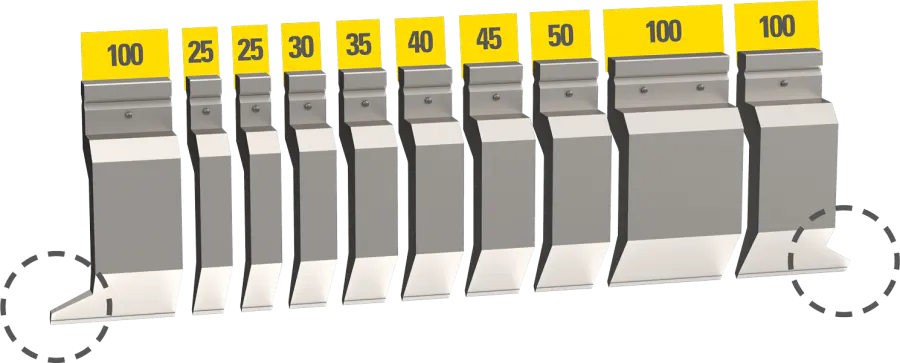

550 mm sectioned
- Sectioned punches are supplied as a complete set
- 10 segments, with safety pins and left and right horn extensions

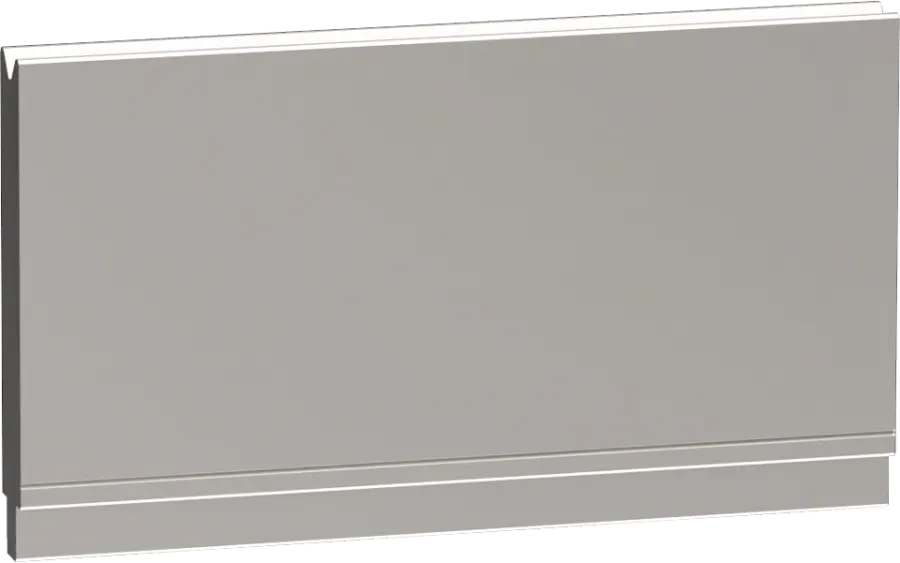

Dies
-
500 mm
-
300 mm
-
200 mm
-
100 mm
-

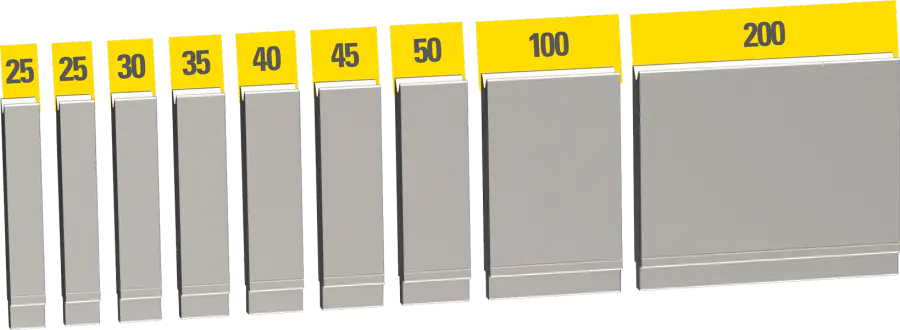

550 mm sectioned
- Sectioned dies are supplied as a complete set
- 9 segments

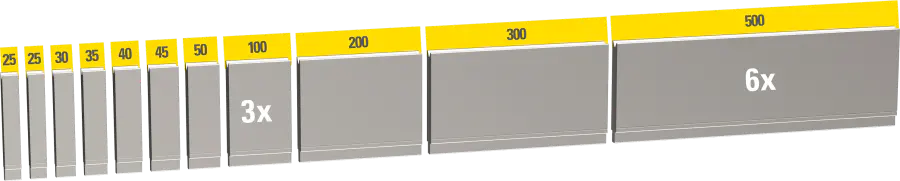

Die sets
-
2,050 mm
- 14 segments
-
3,050 mm
- 16 segments
-
4,050 mm
- 18 segments
Trumpf system Punch clamping options 2 variants
The threshold between the two options is the weight of the segment: 12.5 kg.

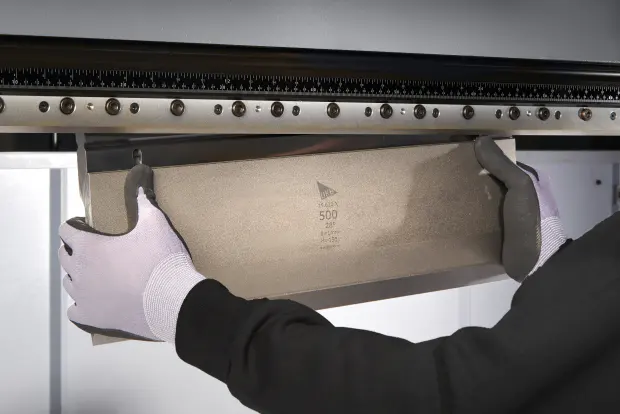

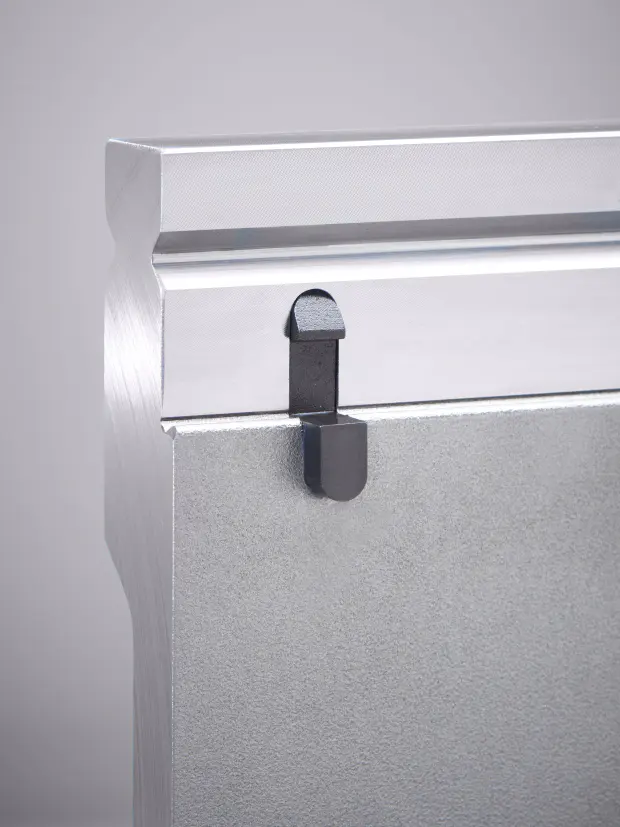

Simple Clamp
- Vertical tool change, for segments up to 12.5 kg
- Shorter set-up time
- Easy handling

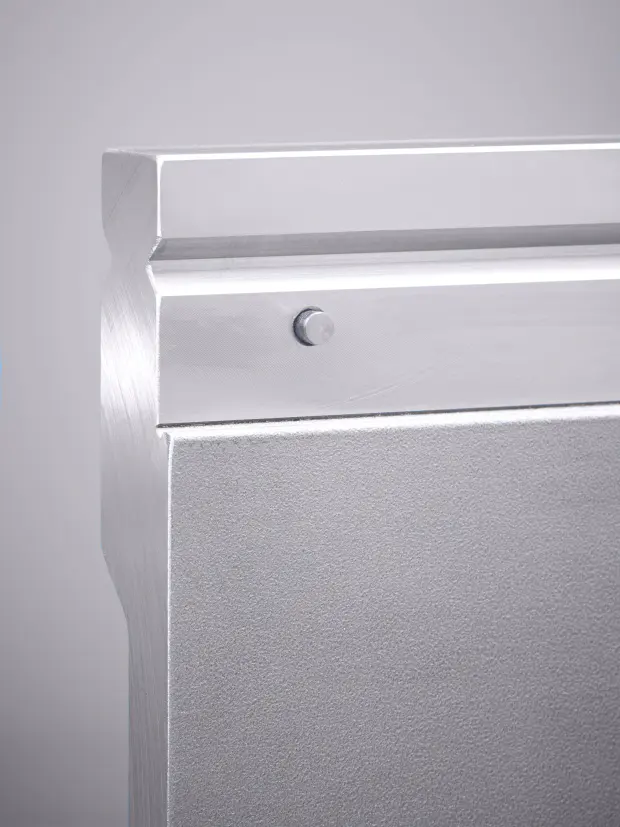

Safety pins

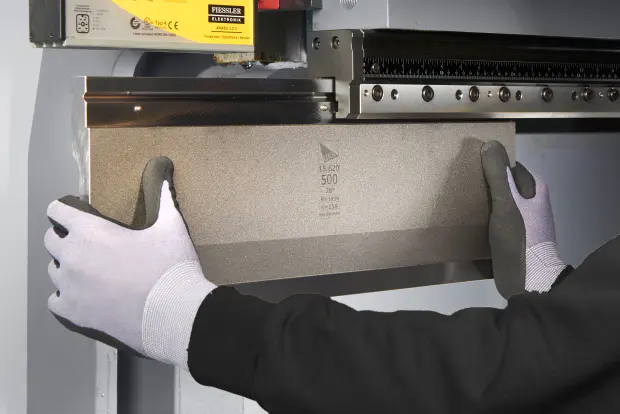

- Horizontal tool change, for segments over 12.5 kg
- Lower purchase price (compared with Simple Clamp)
- Hardened safety pins, on request
Trumpf system Modifications and adaptations 3 categories

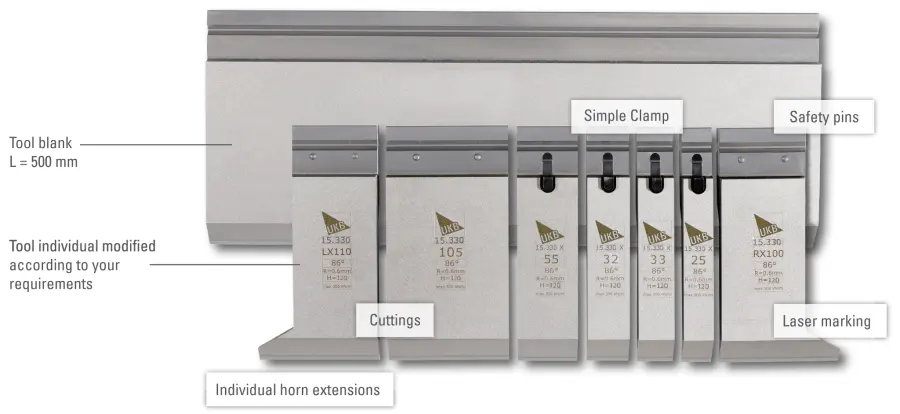

Flexible modification — punches
- Special cuts
- Individual horn extensions
- Fitting a Simple Clamp
- Fitting safety pins
- Laser marking
- Other modifications
Flexible modification — dies
- Special cuts
- Laser marking
- Other modifications

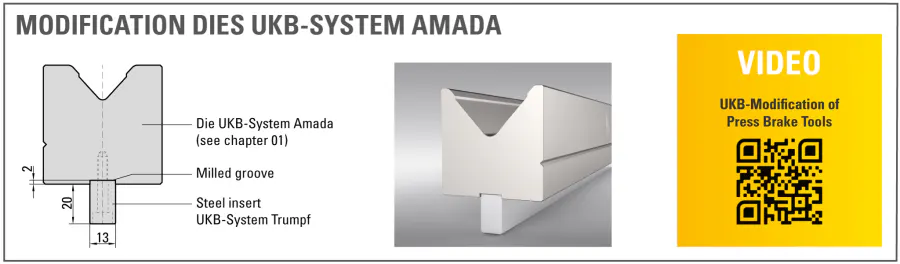

Fitting a steel insert
By fitting a steel insert, UKB Amada system dies can also be used in a UKB Trumpf system clamping.
Need a modification that is not listed here? Send us your specification and we will confirm it with UKB.
Trumpf system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.

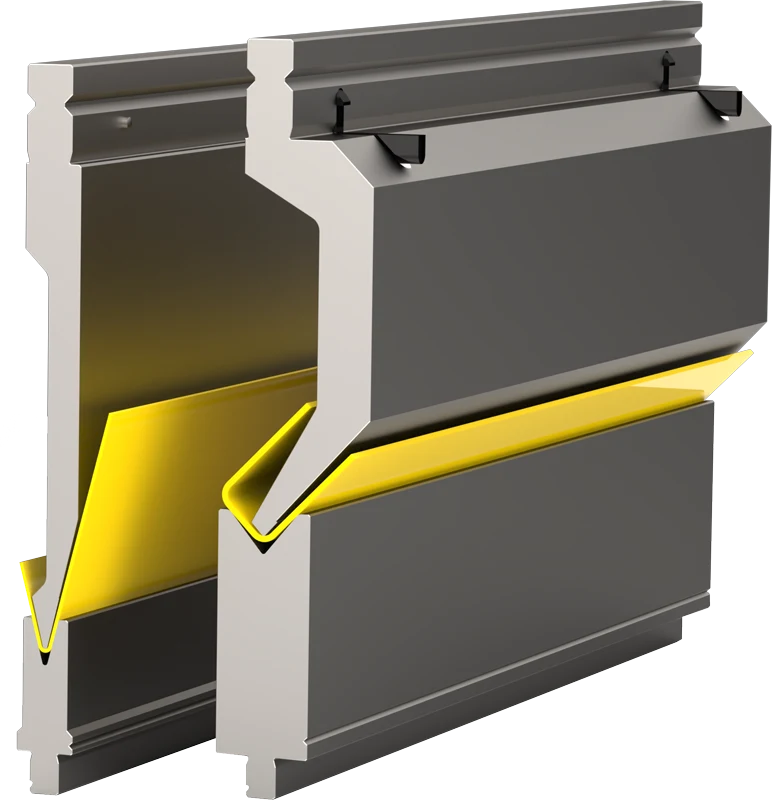

Wila system
UKB punches and dies compatible with the Wila system.
| Component | Description | Catalog |
|---|---|---|
| Wila system punches | Available for Wila type I (H = 163 / 200 mm) and type II (H = 95 / 175 mm) · 42 CrMo4 (1,100–1,200 N/mm²) and C45 (800–850 N/mm²) · Bending radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism · Self-centering, usable on both faces | |
| Wila system dies | Compatible with Wila type I and type II · Working radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism |
Wila system punches
- Description
- Available for Wila type I (H = 163 / 200 mm) and type II (H = 95 / 175 mm) · 42 CrMo4 (1,100–1,200 N/mm²) and C45 (800–850 N/mm²) · Bending radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism · Self-centering, usable on both faces
- Catalog
Wila system dies
- Description
- Compatible with Wila type I and type II · Working radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism
- Catalog
Complete technical data — Wila system Type I and type II · Simple Clamp and safety pin clamping · lengths from 100 to 550 mm · modifications · video
Wila system Quality and precision 3 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- Bending radii / entry radii
- hardened to 52–55 HRC
- Wila type I punch clamping, in two variants
-
- Simple Clamp, for segments ≤ 12.5 kg
- Safety pin, for segments > 12.5 kg
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- self-centring
- usable on both sides
- Tool marking — with all technical information
Punches for the UKB Trumpf system and the UKB LVD type I system can also be used in a UKB Wila system clamping.
Wila system Tool lengths 12 variants
Punches with Simple Clamp ≤ 12.5 kg
-
515 mm
-
300 mm
-
200 mm
-
100 mm
-

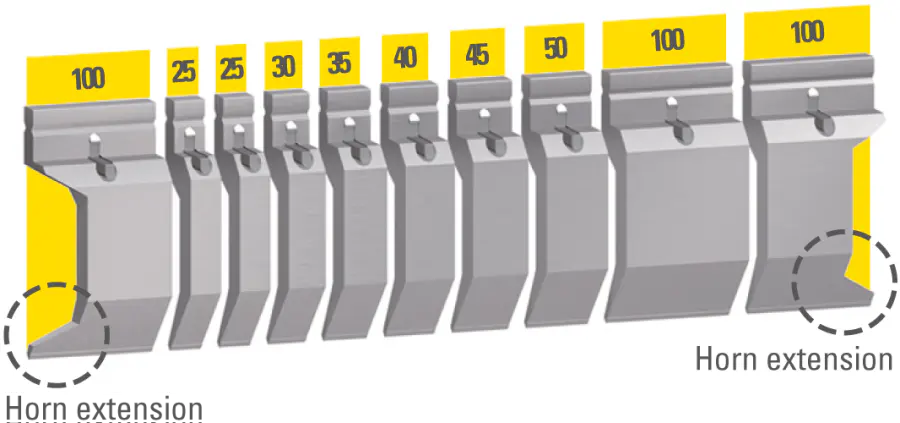

550 mm sectioned
- 10 segments, with left and right horn extensions
Punches with safety pins > 12.5 kg
-
515 mm
-
300 mm
Dies
-
515 mm
-
300 mm
-
200 mm
-
100 mm
-
550 mm sectioned
- 9 segments
Wila system Punch clamping options 2 variants
The threshold between the two options is the weight of the segment: 12.5 kg.
Simple Clamp
- Vertical tool change, for segments up to 12.5 kg
Safety pins
- Horizontal tool change, for segments over 12.5 kg
- Hardened safety pins, on request
Wila system Modifications and adaptations 3 categories

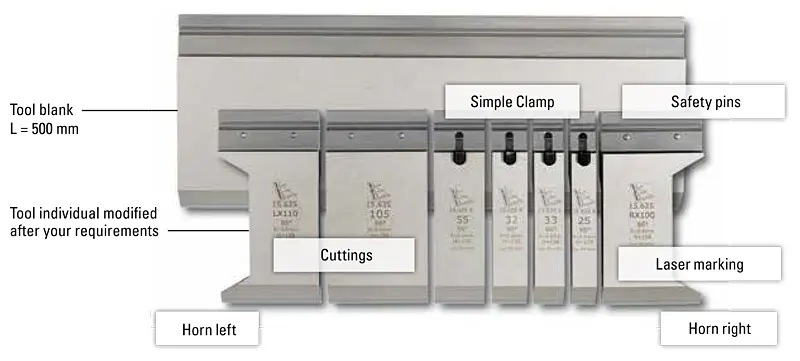

Flexible modification — punches
- Special cuts
- Individual horn extensions
- Fitting a Simple Clamp
- Fitting safety pins
- Laser marking
- Other modifications
Flexible modification — dies
- Special cuts
- Laser marking
- Other modifications
Fitting a steel insert
By fitting a steel insert, UKB Amada system dies can also be used in a UKB Wila system clamping.
Need a modification that is not listed here? Send us your specification and we will confirm it with UKB.

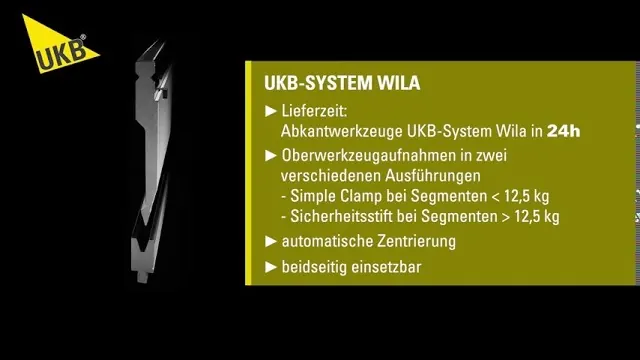

Wila system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.

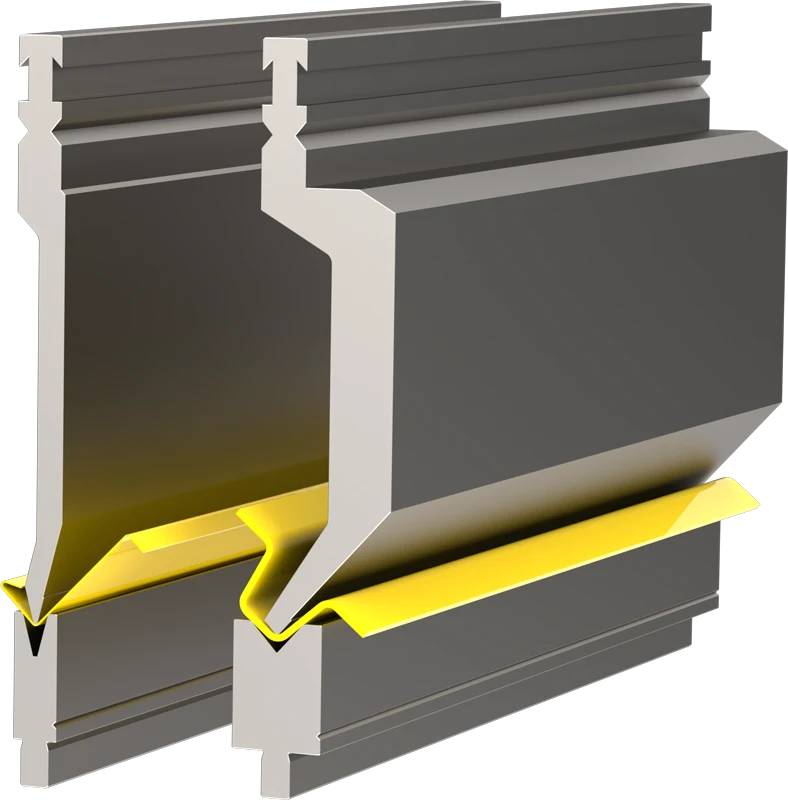

Bystronic system
UKB punches and dies compatible with the Bystronic system.
| Component | Description | Catalog |
|---|---|---|
| Bystronic system punches | Heights H = 175 mm and H = 250 mm · 42 CrMo4 (1,100–1,200 N/mm²) and C45 (650–800 N/mm²) · Bending radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism | |
| Bystronic system dies | Dies at 85° / 60° / 30°, heights H = 55 / 60 / 65 mm · Working radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism |
Bystronic system punches
- Description
- Heights H = 175 mm and H = 250 mm · 42 CrMo4 (1,100–1,200 N/mm²) and C45 (650–800 N/mm²) · Bending radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism
- Catalog
Bystronic system dies
- Description
- Dies at 85° / 60° / 30°, heights H = 55 / 60 / 65 mm · Working radii hardened to 52–55 HRC · Precision-ground, guaranteed interchangeability and parallelism
- Catalog
Complete technical data — Bystronic system Materials and hardness · dimensioned technical drawing · lengths from 100 to 550 mm · steel insert · video
Bystronic system Quality and precision 2 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — 650–800 N/mm²
- Bending radii / entry radii
- hardened to 52–55 HRC
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- Tool marking — with all technical information
Bystronic system Tool lengths 10 variants
Punches
-
515 mm
-
300 mm
-
200 mm
-
100 mm
-

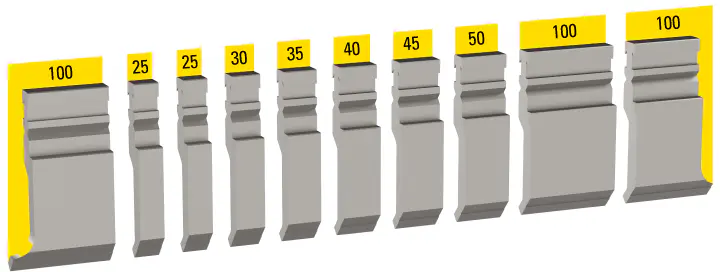

550 mm sectioned
- 10 segments, with left and right horn extensions

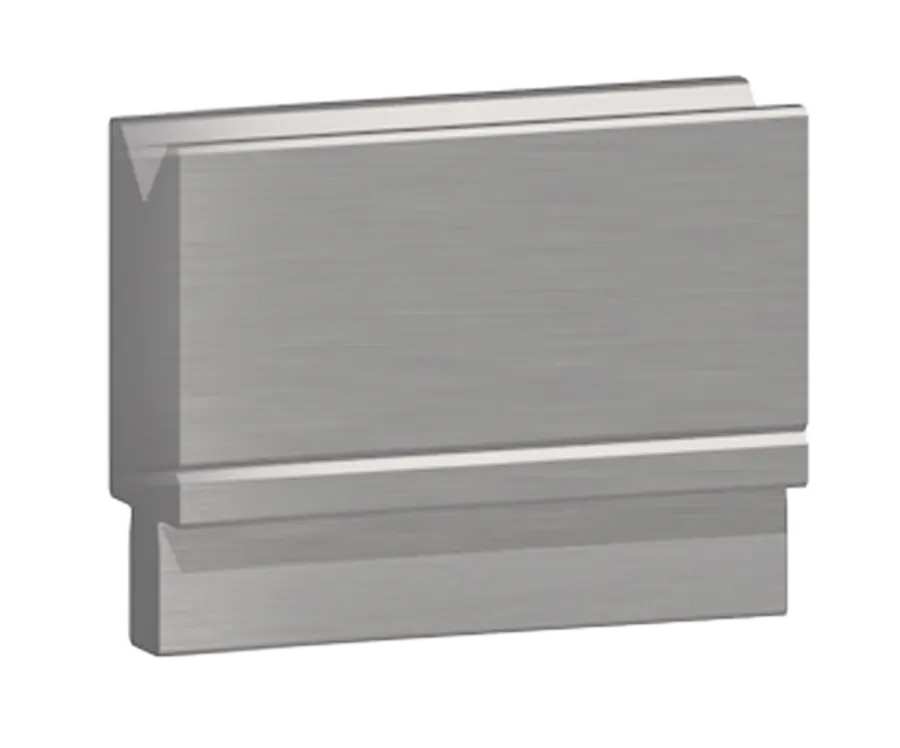

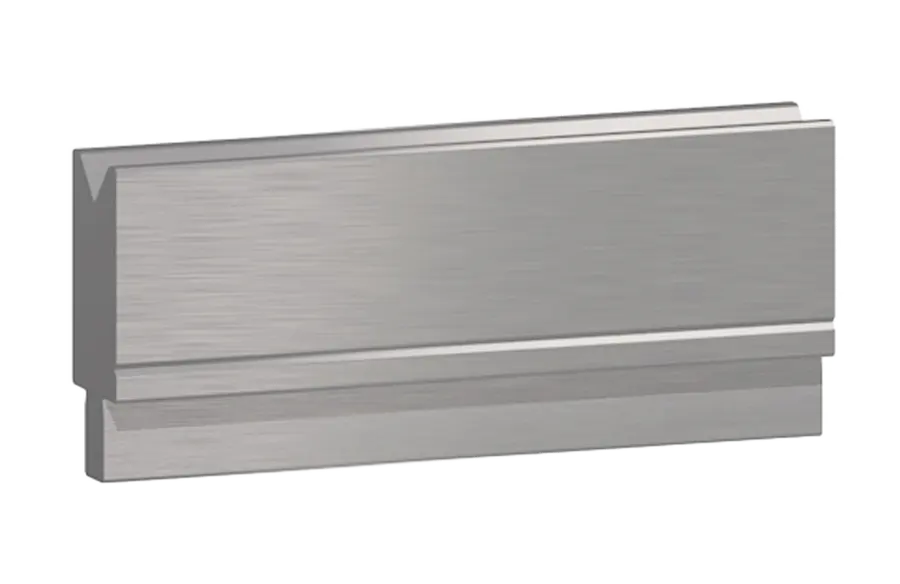

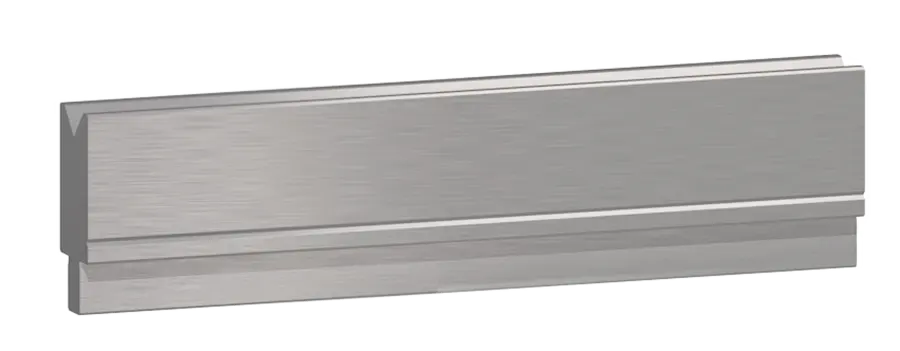

Dies
-
515 mm
-
300 mm
-
200 mm
-
100 mm
-
550 mm sectioned
- 9 segments
Bystronic system Modifications and adaptations 1 categories

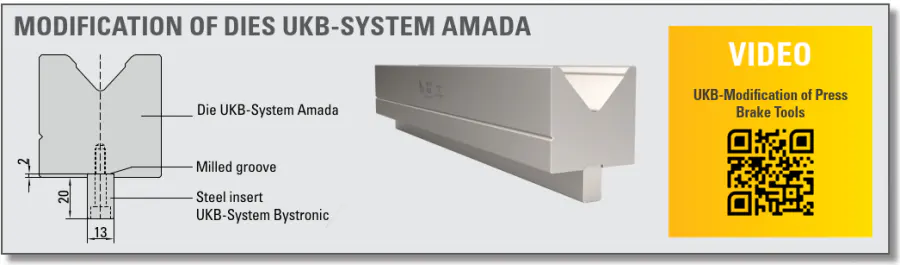

Fitting a steel insert
By fitting a steel insert, UKB Amada system dies can also be used in a UKB Bystronic system clamping.
Need a modification that is not listed here? Send us your specification and we will confirm it with UKB.
Bystronic system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.

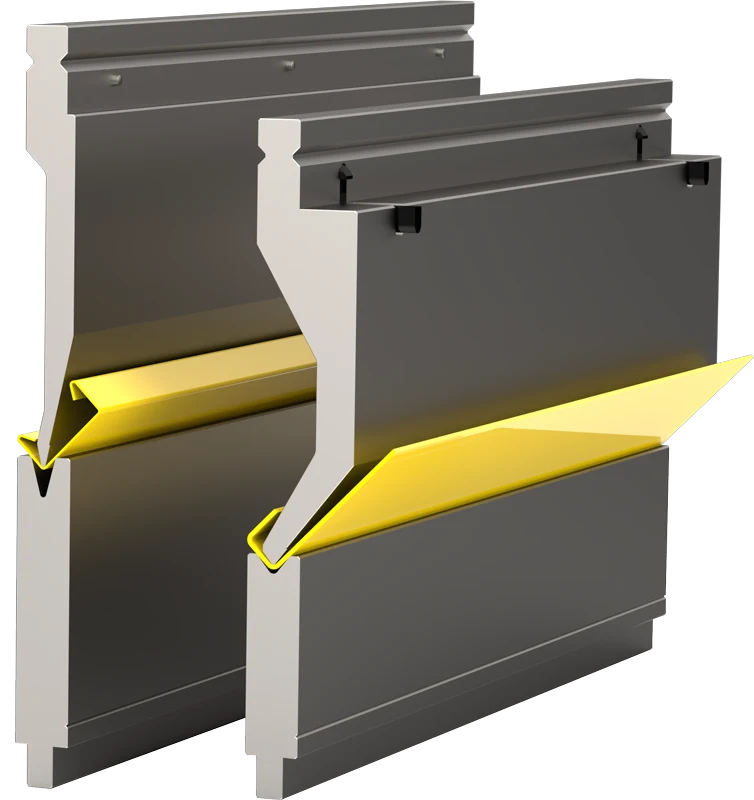

LVD system
UKB punches and dies compatible with the LVD system.
| Component | Description | Catalog |
|---|---|---|
| LVD system punches | Compatible with the LVD system · 42 CrMo4, hardened to 1,100–1,200 N/mm², or C45, hardened to 800–850 or 650–800 N/mm² depending on variant · Bending radii hardened to 52–55 HRC, precision-ground · Guaranteed interchangeability and parallelism | |
| LVD system dies | Compatible with the LVD system · Working radii hardened, precision-ground · Guaranteed interchangeability and parallelism |
LVD system punches
- Description
- Compatible with the LVD system · 42 CrMo4, hardened to 1,100–1,200 N/mm², or C45, hardened to 800–850 or 650–800 N/mm² depending on variant · Bending radii hardened to 52–55 HRC, precision-ground · Guaranteed interchangeability and parallelism
- Catalog
LVD system dies
- Description
- Compatible with the LVD system · Working radii hardened, precision-ground · Guaranteed interchangeability and parallelism
- Catalog

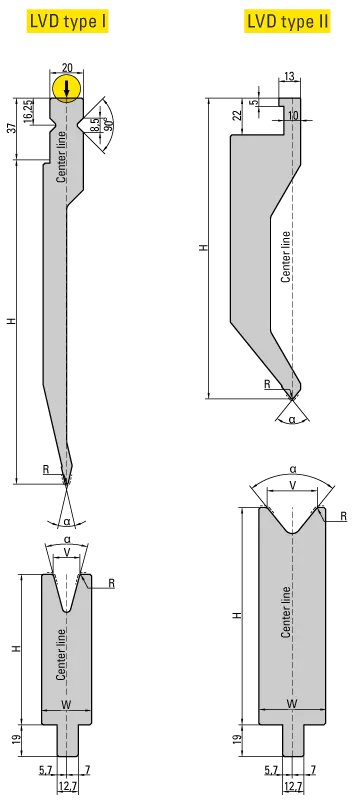

Complete technical data — LVD system Type I and type II · Simple Clamp and safety pin clamping · lengths 250 / 510 / 550 mm · steel insert · video
LVD system Quality and precision 3 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- C45 — 650–800 N/mm²
- Bending radii / entry radii
- hardened to 52–55 HRC
- LVD type I punch clamping, in two variants
-
- Simple Clamp, for segments ≤ 12.5 kg
- Safety pin, for segments > 12.5 kg
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- self-centring
- usable on both sides
- Tool marking — with all technical information
Punches for the UKB Trumpf system and the UKB Wila type I system can also be used in a UKB LVD system clamping.
LVD system Tool lengths 9 variants

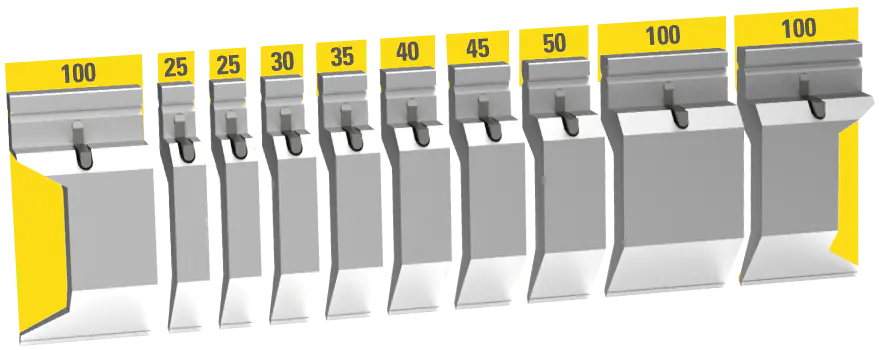

Type I — punches with Simple Clamp ≤ 12.5 kg
-
550 mm sectioned
- 10 segments, with left and right horn extensions
-
510 mm
-
250 mm
Type I — punches with safety pins > 12.5 kg
-
510 mm

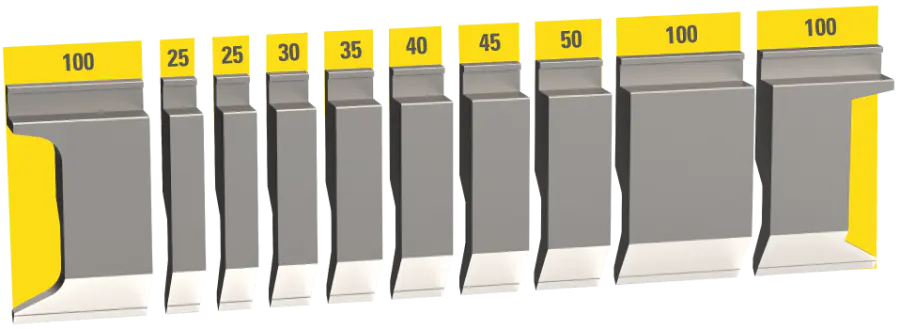

Type II — punches
-
550 mm sectioned
- 10 segments, with left and right horn extensions
-
510 mm

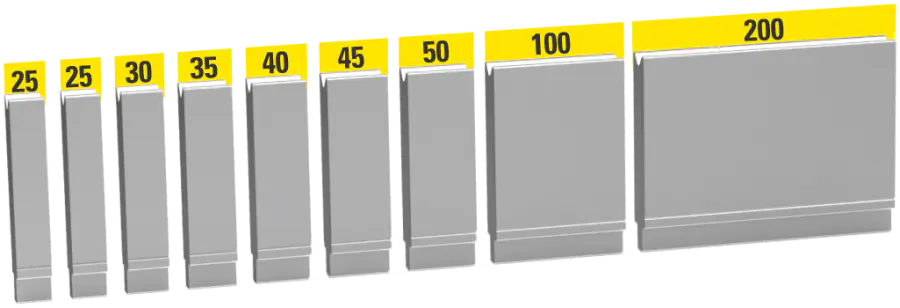

Dies
-
550 mm sectioned
- 9 segments
-
510 mm
-
250 mm
LVD system Punch clamping options 2 variants
The threshold between the two options is the weight of the segment: 12.5 kg.
Simple Clamp
- Vertical tool change, for segments up to 12.5 kg
Safety pins
- Horizontal tool change, for segments over 12.5 kg
- Hardened safety pins, on request
LVD system Modifications and adaptations 1 categories
Fitting a steel insert
By fitting a steel insert, UKB Amada system dies can also be used in UKB LVD system clampings.
Need a modification that is not listed here? Send us your specification and we will confirm it with UKB.
LVD system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.

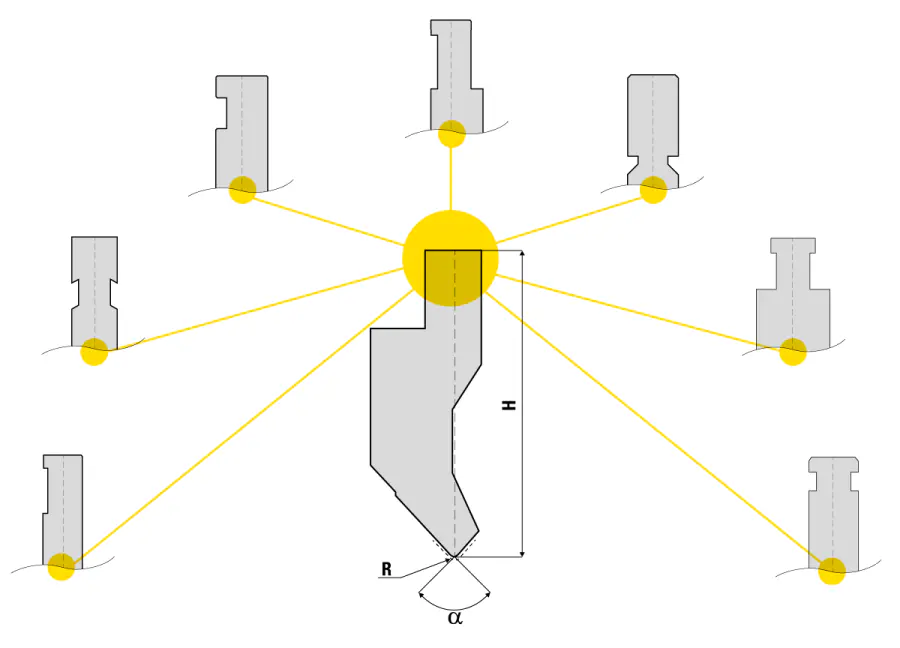

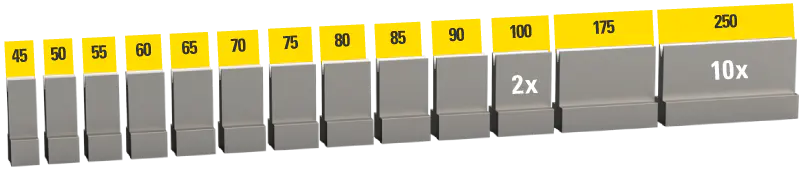

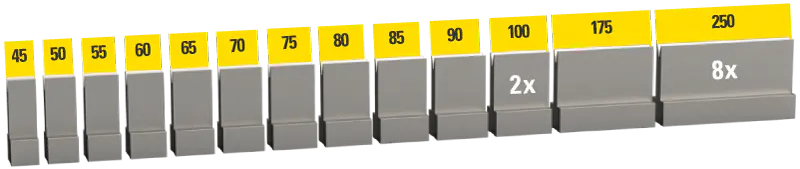

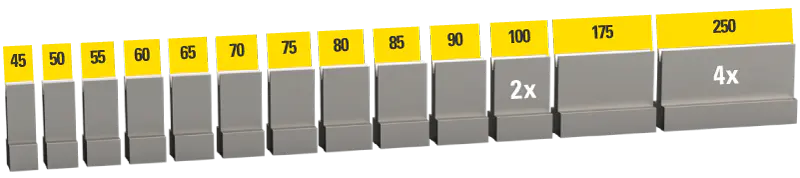

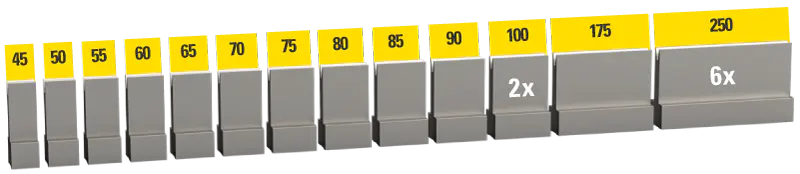

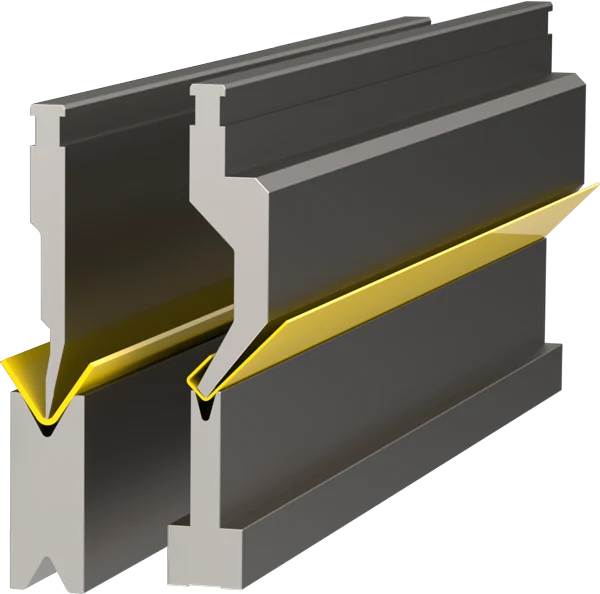

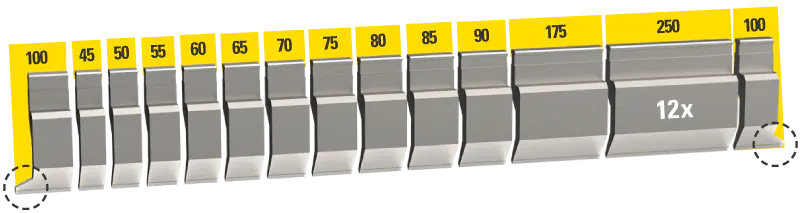

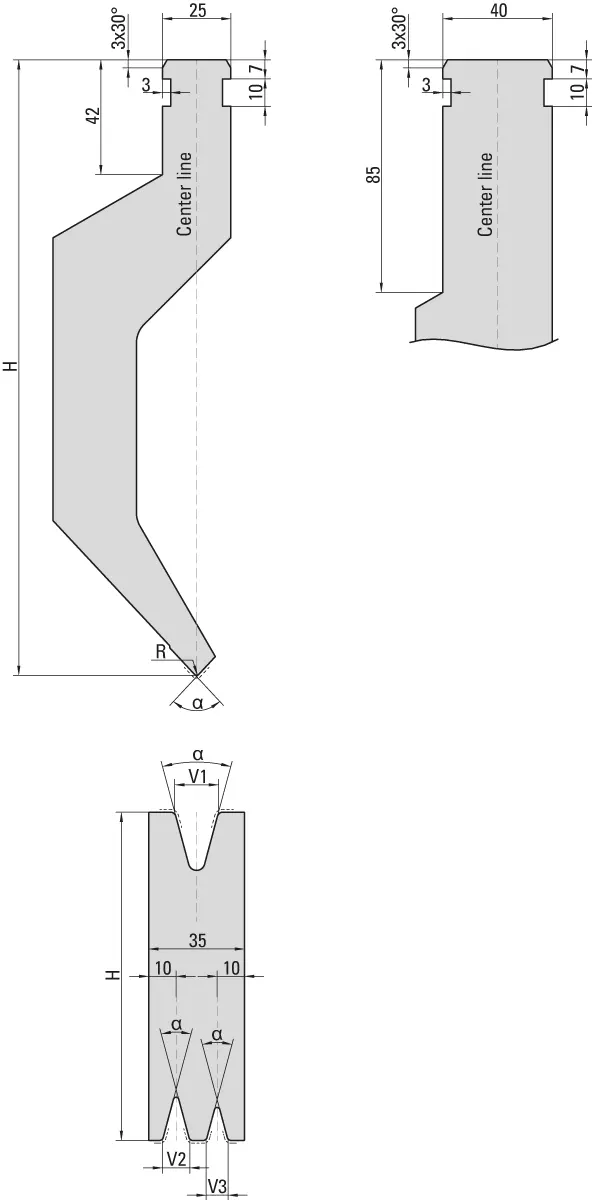

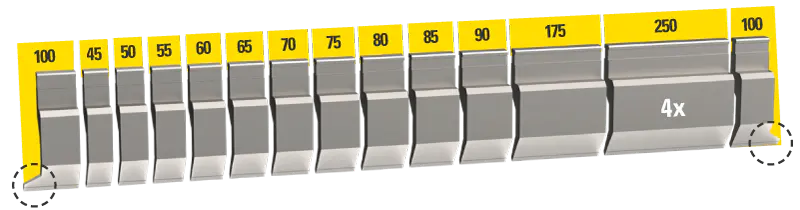

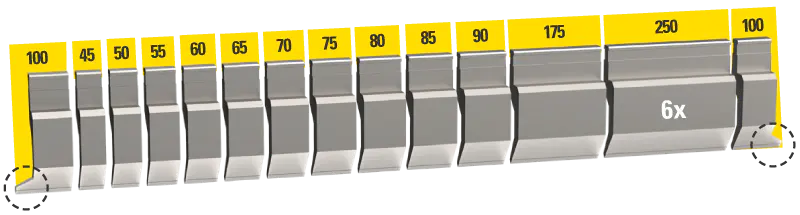

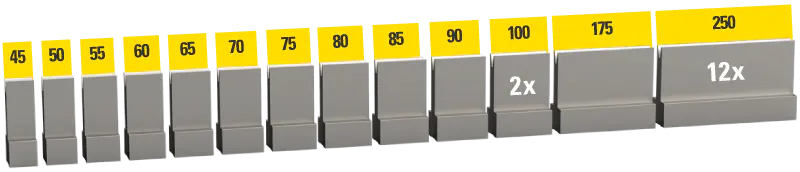

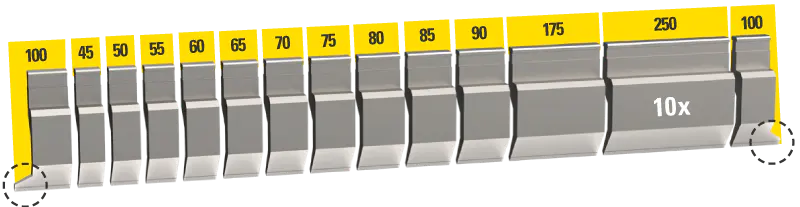

Other systems — EHT, Weinbrenner, and more
Tooling for the EHT and Weinbrenner systems, and other non-standard systems.
| Component | Description | Catalog |
|---|---|---|
| EHT / Weinbrenner punches | Full specifications in the catalog | |
| EHT / Weinbrenner dies | Full specifications in the catalog | |
| System X (non-standard) | Reachable through intermediate adapters. Contact us with your machine specifications. |
EHT / Weinbrenner punches
- Description
- Full specifications in the catalog
- Catalog
EHT / Weinbrenner dies
- Description
- Full specifications in the catalog
- Catalog
System X (non-standard)
- Description
- Reachable through intermediate adapters. Contact us with your machine specifications.
- Catalog
Complete technical data — EHT system 26 mm and 36 mm clamping · sectioned sets from 2,050 to 4,050 mm · individual production · video
EHT system Quality and precision 3 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- C45 — 650–800 N/mm²
- 1.2312 — hardened to 950–1,100 N/mm²
- Bending radii / entry radii
- hardened to 55–58 HRC
- Maximum production length
- 6,000 mm
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- Tool marking — with all technical information
- Individual production — to your specifications
Configure the lengths you need individually, to your own specifications.
EHT system Tool lengths 10 variants
Punches
-
2,050 mm
- 17 segments, with left and right horn extensions
-
2,550 mm
- 19 segments, with left and right horn extensions
-
3,050 mm
- 21 segments, with left and right horn extensions
-
3,550 mm
- 23 segments, with left and right horn extensions
-
4,050 mm
- 25 segments, with left and right horn extensions
Dies
-
2,050 mm
- 17 segments
-
2,550 mm
- 19 segments
-
3,050 mm
- 21 segments
-
3,550 mm
- 23 segments
-
4,050 mm
- 25 segments
EHT system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.
Complete technical data — Weinbrenner system Materials, hardness and technical drawing · individual production to specification · video
Weinbrenner system Quality and precision 3 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- C45 — 650–800 N/mm²
- 1.2312 — hardened to 950–1,100 N/mm²
- Bending radii / entry radii
- hardened to 55–58 HRC
- Maximum production length
- 6,000 mm
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- Tool marking — with all technical information
- Individual production — to your specifications
Weinbrenner system Tool lengths
UKB does not publish a fixed length table for the Weinbrenner system — the tools are produced individually, at the length required.
Weinbrenner system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.
Complete technical data — other system Materials and hardness · clamping drawings · examples of punches and dies made to specification · video
other system Quality and precision 3 specifications
- Optimal materials
-
- 42CrMo4 — hardened to 1,100–1,200 N/mm²
- C45 — hardened to 800–850 N/mm²
- C45 — 650–800 N/mm²
- 1.2312 — hardened to 950–1,100 N/mm²
- Bending radii / entry radii
- hardened to 55–58 HRC
- Maximum production length
- 6,000 mm
Quality guarantees
- Grinding — precision
- Interchangeability and parallelism — guaranteed
- Tool marking — with all technical information
- Individual production — to your specifications
All the punches and dies below are examples. UKB produces individually, to your specifications.
other system Tool lengths 6 variants
Punch examples
-
Examples 1–3
-
Examples 4–6
Die examples
-
Examples 1–3
-
Examples 4–6
-
Examples 7–8
-
Examples 9–10
other system Video
UKB press brake tooling systems — video presentation · source: UKB GmbH. The video is only loaded from YouTube once you press Play.
Intermediate adapters
Let you fit punches whose clamping system differs from the press, so you can use the full UKB tooling range on the machine you already have.
| Adapter type | Compatibility | Catalog |
|---|---|---|
| Punch adapters | Convert the press clamping to the Amada system or the Trumpf/Wila/LVD system, so UKB punches can be fitted on presses with a Bystronic, EHT, Weinbrenner, or other clamping system. Fitted at 50 mm spacing: 4 pieces for an 835 mm press, 10 for a 2,100 mm press, 20 for a 4,100 mm press | |
| Die adapters | Convert the press table so UKB dies can be fitted for the Amada system or the Trumpf/Wila/Bystronic system. They mount on any press brake with a flat table and no clamping system of its own, in lengths of 2,100, 2,600, 3,100, and 4,100 mm |
Punch adapters
- Compatibility
- Convert the press clamping to the Amada system or the Trumpf/Wila/LVD system, so UKB punches can be fitted on presses with a Bystronic, EHT, Weinbrenner, or other clamping system. Fitted at 50 mm spacing: 4 pieces for an 835 mm press, 10 for a 2,100 mm press, 20 for a 4,100 mm press
- Catalog
Die adapters
- Compatibility
- Convert the press table so UKB dies can be fitted for the Amada system or the Trumpf/Wila/Bystronic system. They mount on any press brake with a flat table and no clamping system of its own, in lengths of 2,100, 2,600, 3,100, and 4,100 mm
- Catalog
Special solutions
Special dies, mark-free bending solutions, and tools built for one specific operation.
| Product | Key benefits | Catalog |
|---|---|---|
| UniBend | Minimal marking on short flanges · Holes near the bend line stay undeformed · Suited to diagonal and conical bends · Chequered and bulb plate with minimal marking on the visible face · No damage to the film when bending laminated sheet · Repeatable results from part to part, with fewer tool changes · Covers sheet from 0.5 to 12.0 mm, depending on model | |
| UniBend VARIO | V opening adjustable between 40 and 100 mm, in 5 mm steps, by changing strips · Maximum material thickness 12.0 mm · Flat, concave, and V inserts for V bending, radius bending, overbending, and U bending · The same minimal-marking benefits as UniBend | |
| WingBend PLUS | Die with a slider that avoids bend marks on the sheet · Short flanges with minimal marking, holes near the bend line stay undeformed · Anodized aluminum and polished stainless steel with no visible marks on the surface · No tool contamination when bending galvanized sheet or aluminum, and no rework on parts · Four models, force 500–1,500 kN/m, for sheet from 0.3 to 6.0 mm, supplied as a segmented set (4 segments) · Slider in one piece up to 3,000 mm | |
| Adjustable dies | Adjustable V openings: V25–125, V65–185, V120–300, and V150–400 mm · Fast opening adjustment by swapping strips, fewer die changes and shorter setup time · Recommended thicknesses from about 3 mm (V25–125) up to about 50 mm (V150–400) at Rm = 450 N/mm², including high-strength materials · Hardened rotating rollers (about 60 HRC): reduced-mark bending with up to 30% lower pressing force · Fits directly on any press brake through the die holder, with adjusting strips up to 3,000 mm | |
| Composite dies | Ideal for aluminum, stainless steel, and painted surfaces, with no rework and no contamination of the parts · Reduced marking on the sheet · V from 6.0 to 16.0 mm, angles 88° / 60° / 30°, maximum load 200 kN/m · Fast insert replacement · Holders for the Amada, Trumpf, Wila/Bystronic, and LVD systems | |
| Protective films | Prevents bend marks on the sheet and die contamination · Ideal for aluminum, stainless steel, and painted surfaces, with no rework on parts · Shore 95 A in 0.4 / 0.8 / 1.5 / 2.0 mm and Shore 60 A in 0.55 mm, widths of 102 and 152 mm · Universal use on all die types, with a holder fixed magnetically straight onto the die | |
| PU holders and inserts | Polyurethane inserts for mark-free bending · Ideal for aluminum, stainless steel, and painted surfaces · Available in three hardnesses: Shore 80A / 90A / 95A · Suited to V, radius, and U bends · No rework on parts, superior finish | |
| Made-to-order special tools | Tools built for one specific operation, from your drawing: U profiles in a single stroke, with small inside dimensions and tall flanges · Hinges in sheet up to 4.0 mm, with a minimum inside diameter of 2.5 × thickness for steel and aluminum and 3.0 × thickness for stainless steel · Stiffening beads in a single stroke, in sheet up to 5.0 mm, in any form, independent of the bend angle · Z steps, embossed radii, and trapezoidal profiles, with one tool across different thicknesses and materials · Flattening in sheet up to 3.0 mm · Ventilation louvers in sheet up to 4.0 mm, with close-pitch adjacent slots · Active components are hardened, and the tool is verified by test bends on your own sheet |
UniBend
- Key benefits
- Minimal marking on short flanges · Holes near the bend line stay undeformed · Suited to diagonal and conical bends · Chequered and bulb plate with minimal marking on the visible face · No damage to the film when bending laminated sheet · Repeatable results from part to part, with fewer tool changes · Covers sheet from 0.5 to 12.0 mm, depending on model
- Catalog
UniBend VARIO
- Key benefits
- V opening adjustable between 40 and 100 mm, in 5 mm steps, by changing strips · Maximum material thickness 12.0 mm · Flat, concave, and V inserts for V bending, radius bending, overbending, and U bending · The same minimal-marking benefits as UniBend
- Catalog
WingBend PLUS
- Key benefits
- Die with a slider that avoids bend marks on the sheet · Short flanges with minimal marking, holes near the bend line stay undeformed · Anodized aluminum and polished stainless steel with no visible marks on the surface · No tool contamination when bending galvanized sheet or aluminum, and no rework on parts · Four models, force 500–1,500 kN/m, for sheet from 0.3 to 6.0 mm, supplied as a segmented set (4 segments) · Slider in one piece up to 3,000 mm
- Catalog
Adjustable dies
- Key benefits
- Adjustable V openings: V25–125, V65–185, V120–300, and V150–400 mm · Fast opening adjustment by swapping strips, fewer die changes and shorter setup time · Recommended thicknesses from about 3 mm (V25–125) up to about 50 mm (V150–400) at Rm = 450 N/mm², including high-strength materials · Hardened rotating rollers (about 60 HRC): reduced-mark bending with up to 30% lower pressing force · Fits directly on any press brake through the die holder, with adjusting strips up to 3,000 mm
- Catalog
Composite dies
- Key benefits
- Ideal for aluminum, stainless steel, and painted surfaces, with no rework and no contamination of the parts · Reduced marking on the sheet · V from 6.0 to 16.0 mm, angles 88° / 60° / 30°, maximum load 200 kN/m · Fast insert replacement · Holders for the Amada, Trumpf, Wila/Bystronic, and LVD systems
- Catalog
Protective films
- Key benefits
- Prevents bend marks on the sheet and die contamination · Ideal for aluminum, stainless steel, and painted surfaces, with no rework on parts · Shore 95 A in 0.4 / 0.8 / 1.5 / 2.0 mm and Shore 60 A in 0.55 mm, widths of 102 and 152 mm · Universal use on all die types, with a holder fixed magnetically straight onto the die
- Catalog
PU holders and inserts
- Key benefits
- Polyurethane inserts for mark-free bending · Ideal for aluminum, stainless steel, and painted surfaces · Available in three hardnesses: Shore 80A / 90A / 95A · Suited to V, radius, and U bends · No rework on parts, superior finish
- Catalog
Made-to-order special tools
- Key benefits
- Tools built for one specific operation, from your drawing: U profiles in a single stroke, with small inside dimensions and tall flanges · Hinges in sheet up to 4.0 mm, with a minimum inside diameter of 2.5 × thickness for steel and aluminum and 3.0 × thickness for stainless steel · Stiffening beads in a single stroke, in sheet up to 5.0 mm, in any form, independent of the bend angle · Z steps, embossed radii, and trapezoidal profiles, with one tool across different thicknesses and materials · Flattening in sheet up to 3.0 mm · Ventilation louvers in sheet up to 4.0 mm, with close-pitch adjacent slots · Active components are hardened, and the tool is verified by test bends on your own sheet
- Catalog
Guillotine blades
Made by UKB for a wide range of shearing machines. The blade material is chosen according to what you cut, whether aluminum, steel, stainless steel, or other materials, according to the minimum, average, and maximum thickness, and according to the duty cycle: occasional, single-shift, or multi-shift.
Maximum length
4,200 mm
single piece
Maximum length
4,200 mm
single piece
Cutting edges
4 · 2 · 1
options available
Design
Made to order
to customer specifications
Accessories
UKB accessories for organizing and using tooling efficiently.
Frequently asked questions
Also running a CNC punch press? Mate punching tools →, compatible with the Amada, Trumpf, Euromac, LVD, Prima Power, and Salvagnini systems.
Not sure which system your press uses?
Send us your machine's make and model and we'll confirm the right UKB tooling, free of charge.
We'll get back to you once we understand your request.
